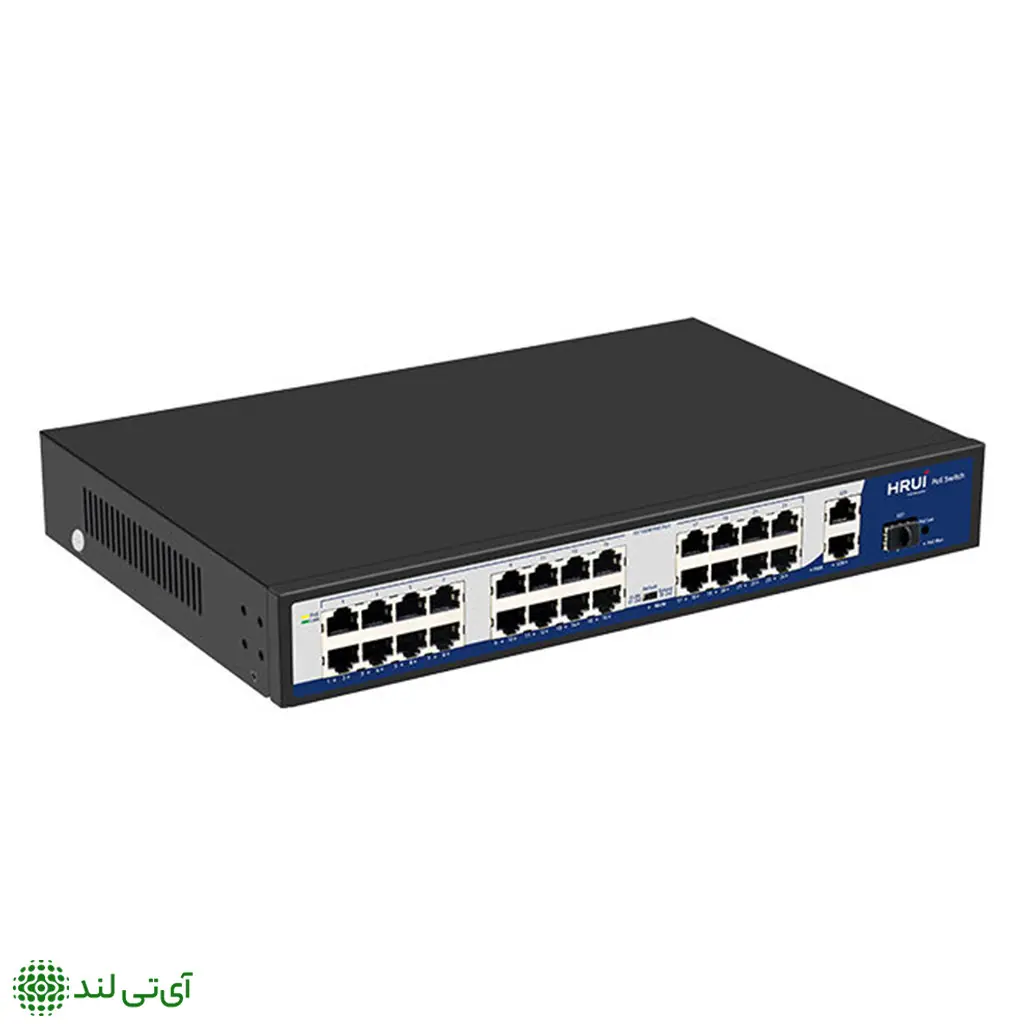

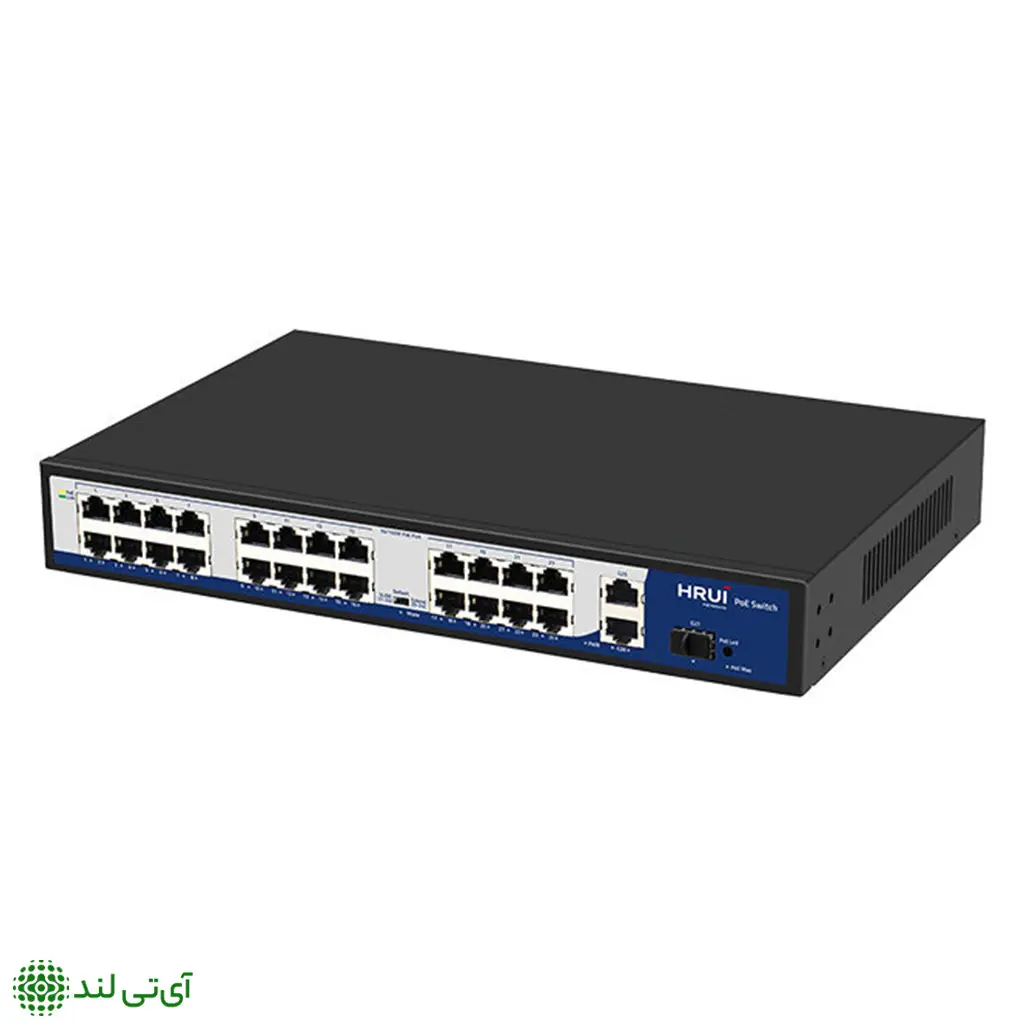

سوئیچ PoE اچ ار یو ای HRUI HR900-AF-2421GS-300
- سوئیچ 24 پورت 10/100Mbps PoE و 2 پورت Uplink گیگ و یک پورت SFP گیگ
- سوئیچ PoE
- خروجی 300 وات
- 30 ماه وارانتی بی قید و شرط
Hardware Features & Performance |
||
Model |
HR900-AF-2421GS-300 | |
General |
Interface | 24 *100Mbps PoE ports2 *Gigabit RJ45 ports
1 *Gigabit SFP port |
| Port Standard | IEEE802.3 (Ethernet)IEEE802.3u (Fast Ethernet)
IEEE802.3ab (Gigabit Ethernet) IEEE802.3x (Flow Control) IEEE 802.3z (Gigabit Ethernet Fiber Standard) |
|
Performance |
Switching Capacity | 10.8Gbps |
| Packet Forwarding Rate | 8.03Mpps | |
| Packet Buffer | 768Kbit | |
| MAC Address Table | 2K | |
| Transmission Method | Store and Forward | |
PoE |
PoE Standard | IEEE802.3af （15.4W）IEEE802.3at （30W） |
| POE Port Output Voltage | DC 44-57V | |
| PoE Ports | Port 1-24 PoE power output <30W | |
| PoE Power Budget | 290W | |
Physical |
Power Supply | AC 100-240V 50/60HzDC 52V 5.76A |
| Mainboard Power Consumption | 6.6W | |
| Structure Information | Product Dimensions :320*207*45mmPackaging Dimensions : 370*290*85mm
Product Net Weight:1.79KG Product Gross Weight:2.32KG |
|
| Packing Information | Carton Dimensions :445*310*390mmPacking Quantity: 5PCS
Packing Weight: 12.6KG |
|
| Packing List | switch 1pcs, power cord 1pcs, instruction manual 1pcs，certificate of qualification 1pcs | |
| Fan Quantity | 0 | |
| Installation | desktop | |
Environment |
Surge Protection | Surge protection: common mode 4KV, differential mode 2KVElectrostatic ESD: Air 8KV, Contact 6KV (Class B) |
| Operating Temperature | 0~40°C | |
| Storage Temperature | -40 °C to 70 °C | |
| Operation Humidity | 10%~90%，non condensing | |
| Storage Humidity | 5%~95%，non condensing | |
Hardware Features & Performance |
||
Buttons&Indicator Lights |
PWR | On: Powered onOff: Powered off |
| Mode | On：VLANFlashing：Extend
Off：Default |
|
| 1-27 Green Light | On: Link normalOff: Link blocked
Flashing: Data transmitting |
|
| 1-24 Yellow Light (PoE) | On: PoE power onOff: PoE powered off | |
| PoE Max | On: indicates PoE power usage is less than 90%Flashing: indicates PoE power usage of 90% ≤ P ≤ 95%
Off: indicates that PoE power is used at 95%<P<100% |
|
| PoE LED Buttons | Dual color light selection: default green (link data), switch yellow light (PoE) | |
| VLAN/Default/Extend Modes Buttons | VLAN: Isolation mode, 1-24 ports isolated from each other, communicating with 25-27 ports, port PoE watchdog mode enabledDefault: Normal mode, all interfaces can communicate with each other, transmission distance is within 100 meters, transmission rate is 10/100Mbps adaptive, port PoE watchdog mode is turned off
Extend: Link extension mode, 9-24 ports PoE power supply and data transmission distance can be extended to 250 meters, transmission speed is 10Mbps, port PoE watchdog mode is enabled |
|
| برند |
HRUI | اچ آر یو آی |
|---|---|
| گارانتی |
30 ماه وارانتی ( تعویض بی قید و شرط ) |
