سوئیچ PoE گیگ اچ ار یو ای HRUI HR900-AFG-82NS
تماس بگیرید
سوئیچ PoE اچ ار یو ای HRUI HR901-AF-821GNS
تماس بگیرید

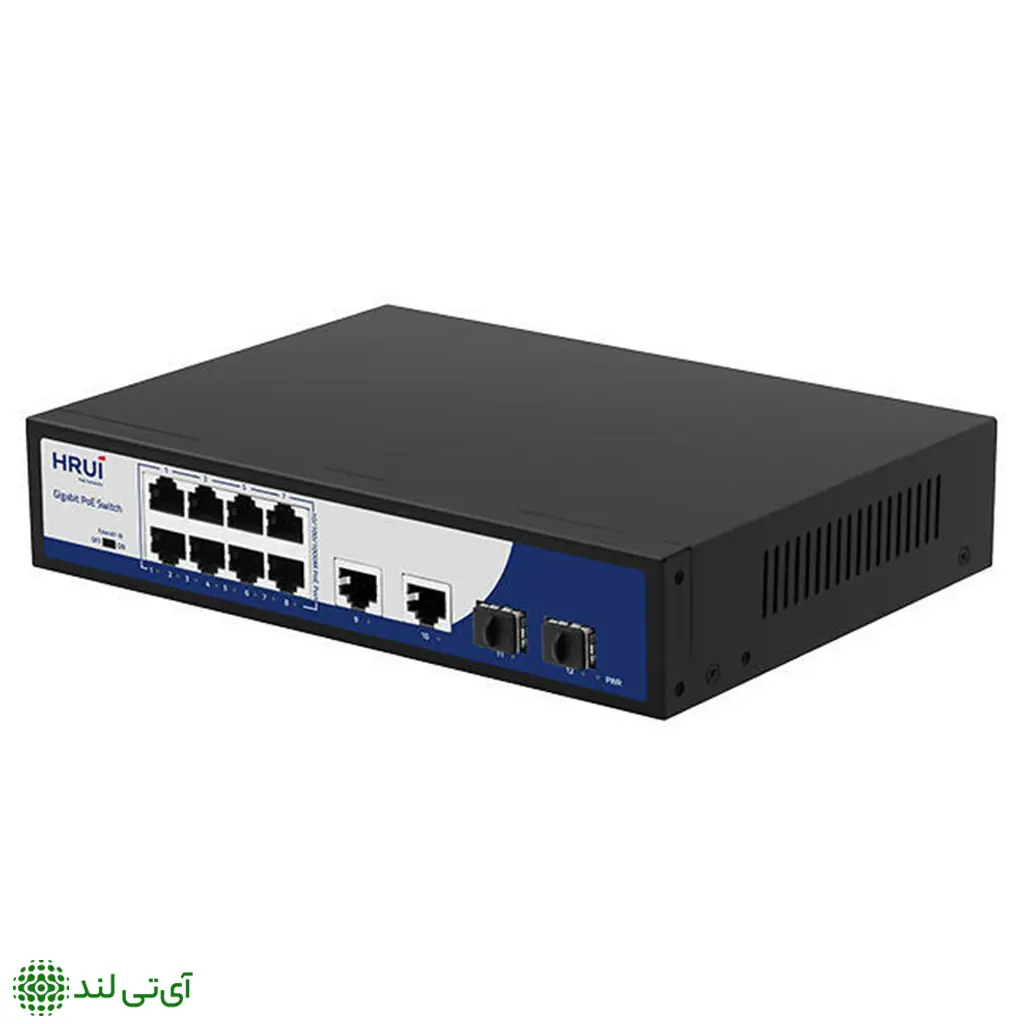

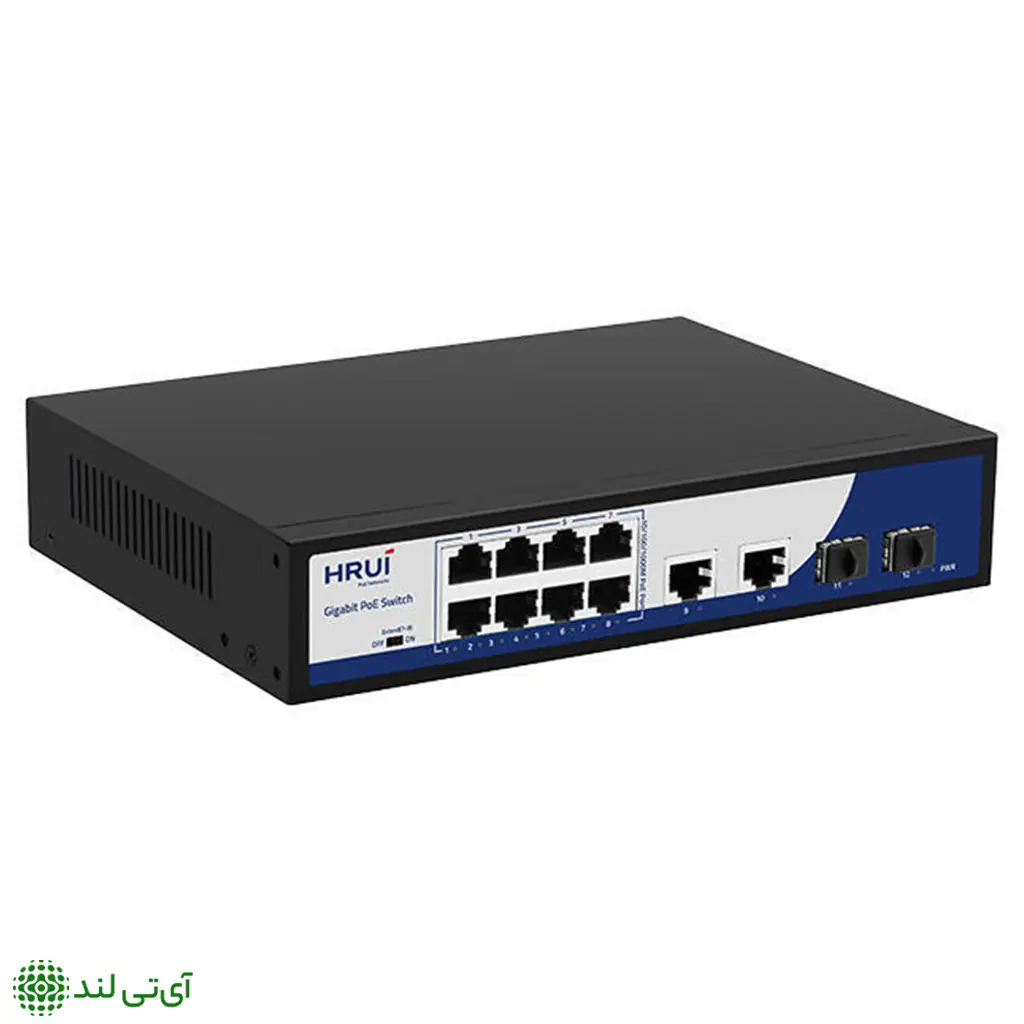

سوئیچ PoE گیگ اچ ار یو ای HRUI HR900-AFG-822NS
- سوئیچ 8 پورت 10/100/1000Mbps PoE و 2 پورت Uplink گیگ و 2 پورت Uplink SFP
- سوئیچ گیگ PoE
- توان کل 110 وات
- 30 ماه وارانتی بی قید و شرط
تماس بگیرید
Technical Specification |
|
I/O Interface |
|
| Power | AC INPUT (100-240 V) |
| Ethernet | 8* Gigabit PoE Ports2* Gigabit Ethernet ports 2* Gigabit SFP Ports； |
| Chipset | EN8850DH |
Performance |
|
| Bandwidth | 24Gbps |
| Packet Forward Rate | 17.856Mpps |
| Package Cache | 448Kbit |
| MAC Address | 2K |
| Jumbo Frame | 9216bytes |
| Forwarding Mode | Storage & forward |
| MTBF | 100000 Hours |
Standard |
|
| Network Protocol | IEEE802.3 (Ethernet) IEEE802.3u (Fast Ethernet) IEEE802.3ab (Gigabit Ethernet) IEEE802.3x (Flow Control)IEEE 802.3z (Gigabit Ethernet Fiber Standard) |
| PoE Standard | IEEE802.3af （15.4W） IEEE802.3at （30W） |
| Industry Standard | EMI: FCC Part 15 CISPR (EN55032) class A EMS: EN61000-4-2 (ESD),IEN61000-4-5 （Surge） |
| Network medium | 10Base-T: Cat 3, 4, 5 Class or above UTP/STP (≤ 100m)100Base-TX: Cat 5 Class or above UTP/STP (≤ 100m) 1000Base-TX: Cat 5 Class or above UTP/STP (≤ 100m) |
| Optical Medium | Multimode optical fiber: 50/125, 62.5/125, 100/140umSingle-mode optical fiber: 8/125, 8.7/125, 9/125, 10/125um |
Certification |
|
| Safety Certificate | CCC/CE/FCC/UL/ROHS |
Environment Standard |
|
| Working Environment | Working temperature: -10~50°C Storage temperature: -40~70°CWorking humidity: 10%~90%, non-condensing Storage humidity: 5%~95%, non-condensing |
Physical Structure |
|
| Structure Size | Product Dimensions: 220*161*44.5mm Package Dimensions: 315*215*85mm Product N.W: 0.92kgProduct G.W: 1.22kg |
| Packing Info | Carton Dimensions: 445*445*335mm Packing Quantity: 10 PCSPacking Weight: 13.2KG |
| Power Voltage | Input voltage: AC 100-240 V 50-60Hz Supply power：52V /2.3A 120W |
| Power | Product power: ≤ 10WPOE power: ≤ 110W |
| Packaging List | Switch 1 pc, Power cord 1 pc, User manual 1 pc, Certification 1 pc |
Function Indicator |
|
| Indicator | PWR (Power)，1-12 Green Light (Link&Data) |
| PWR | On: Powered on Off: Powered off |
| 1-10 Green Light (Link&Data) | On: Link normal Off: Link blockedFlashing: Data transmitting |
| DIP Switch | Default: common mode, all interfaces can communicate with each other, the transmission distance is less than 100 meters, the transmission rate is 10/100/1000M adaptive; The port AI mode is disabledExtend: Link extension mode, 7-8 ports force 10M, transmisstion distance 250M (enable POE watchdog) |
| برند |
HRUI | اچ آر یو آی |
|---|---|
| گارانتی |
30 ماه وارانتی ( تعویض بی قید و شرط ) |
