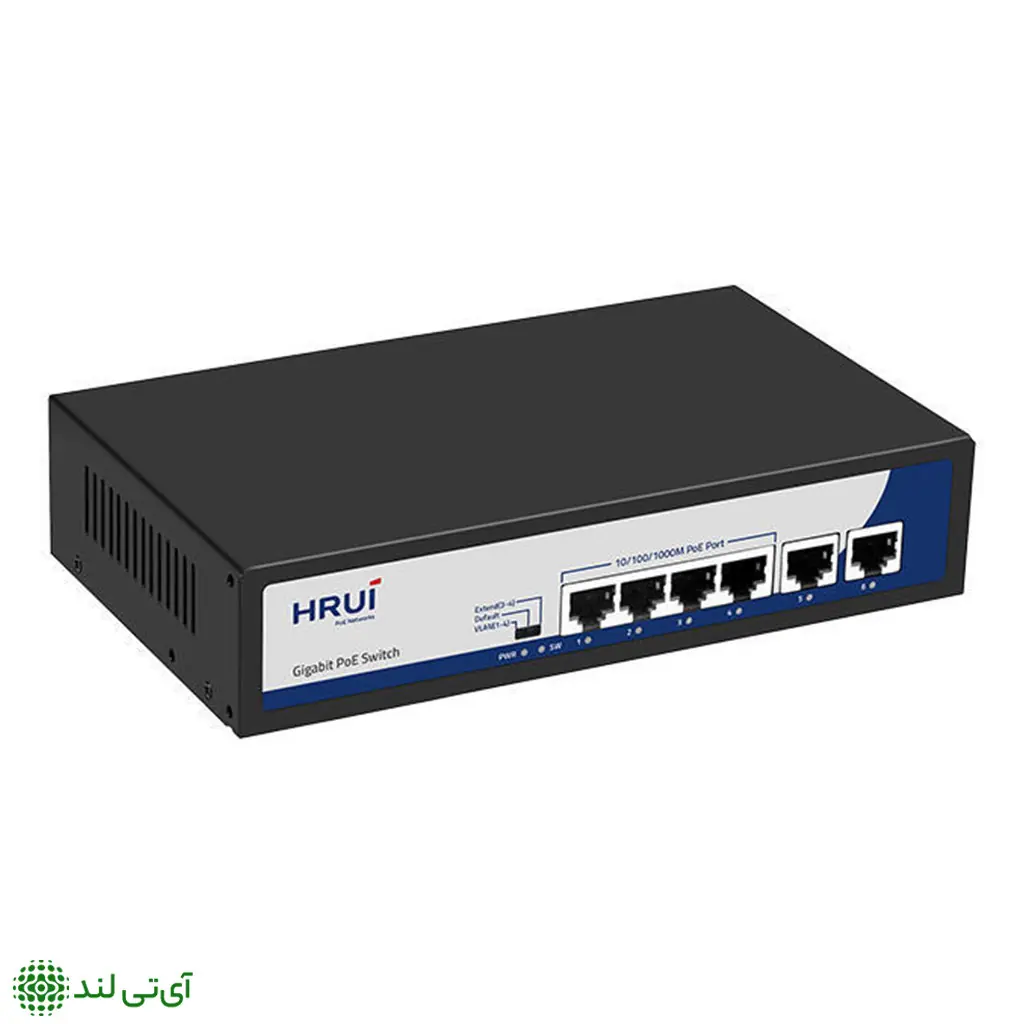

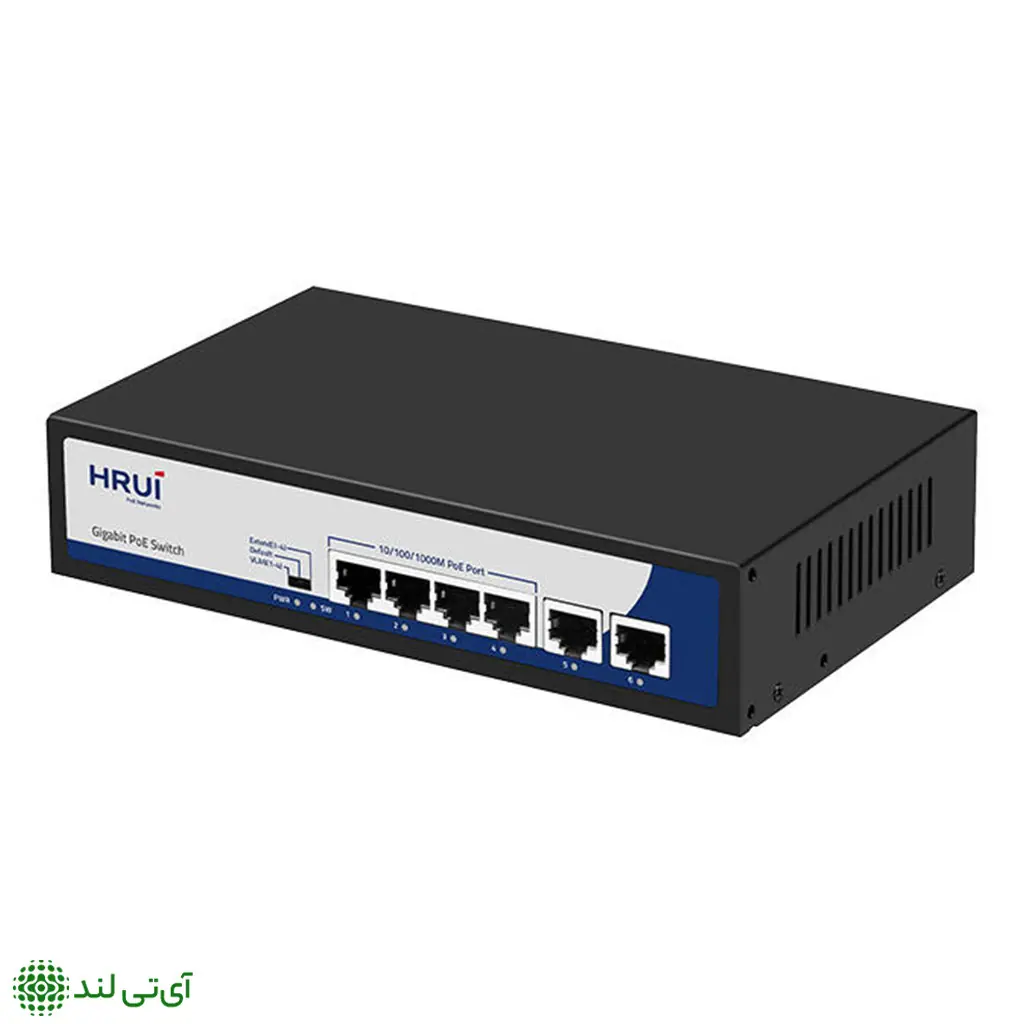

سوئیچ PoE گیگ اچ ار یو ای HRUI HR900-AFG-42N
- سوئیچ 4 پورت PoE گیگ و 2 پورت Uplink گیگ
سوئیچ گیگ PoE - توان کل 65 وات
- پشتیبانی پورت های 4-3 از قابلیت اکستند (Extend)
- 30 ماه وارانتی بی قید و شرط
- ایران کد 2233120766280046
تماس بگیرید
Specifications |
|
I/O Interface |
|
| Power | AC INPUT （100-240V） 50/60Hz |
| Ethernet | 4* Gigabit PoE ports2* Gigabit Ethernet ports |
| Chip | RTL8367（5E19） |
Performance |
|
| Bandwidth | 12Gbps |
| Packet Forwarding Rate | 8.928Mpps |
| Package Cache | 1Mb |
| Mac Address | 2K |
| Jumbo Frame | 9216bytes |
| Forwarding mode | Store Forward |
| MTBF | 100, 000 hour |
Standard |
|
| Network Protocol | IEEE802.3 (Ethernet)IEEE802.3u (Fast Ethernet)
IEEE802.3ab(Gigabit Ethernet) IEEE802.3x (Flow control) |
| PoE Protocol | IEEE802.3af （15.4W）IEEE802.3at （30W） |
| Industry Standard | EMI: FCC Part 15 CISPR (EN55032) class AEMS: EN61000-4-2 (ESD)、
EN61000-4-5 (Surge) |
| Network Media | 10Base-T : Cat3, 4, 5 or above UTP/STP(≤100m)100Base-TX : Cat5 or above UTP/STP(≤100m)
1000Base-TX : Cat5 or above UTP/STP(≤100m) |
| Safety certification | CE、FCC、RoHS |
Environment Standard |
|
| Working Environment | Working temperature: – 10~50 ℃Storage temperature: – 40~70 ℃
Working humidity: 10%~90%, non condensing Storage humidity: 5%~95%, non condensing |
Physical Specification |
|
| Structure size | Product size: 200* 118* 44mmPackage size: 245* 190* 60mm
Product net weight: 0.61Kg Product gross weight: 0.91Kg |
| Packing information | Outer box size: 520* 320* 400mmPacking quantity: 20 sets
Packing weight: 19.2KG |
| Supply voltage | Input voltage: AC 100-240 V 50/60HzPower supply: 52V1.25A |
| Packing list | Switch, 1 PCSPower cord, 1PCS
Manual and certificate of conformity, 1 PCS |
Functional indication |
|
| PWR (Power light) | PWR(Power indication), Mode(DIP indication), 1-6 Green light(Link&Data) |
| PWR | On: Powered onOff: Powered off |
| Mode | On：VLAN(Port isolation)Off：Default(Normal mode)
Flashing：Extend(Link extension) |
| 1-6 Green light | On：Link connection is normalOff：Link not working
Flashing：Data transmitting |
| VLAN | Port isolation: 1-4 ports realize isolation between the each port of the monitoring network and interworking with the uplink port to protect internet security. |
| Default | Normal mode, all ports communicate with each other, transmission distance is within 100 meters, transmission rate is 10/100/1000M self-adaptive |
| Extend | In the link extension mode, the 3-4 port PoE power supply and data transmission distance can be extended to 250 meters, and the transmission rate turns to 10 M |
| برند |
HRUI | اچ آر یو آی |
|---|---|
| گارانتی |
30 ماه وارانتی ( تعویض بی قید و شرط ) |
