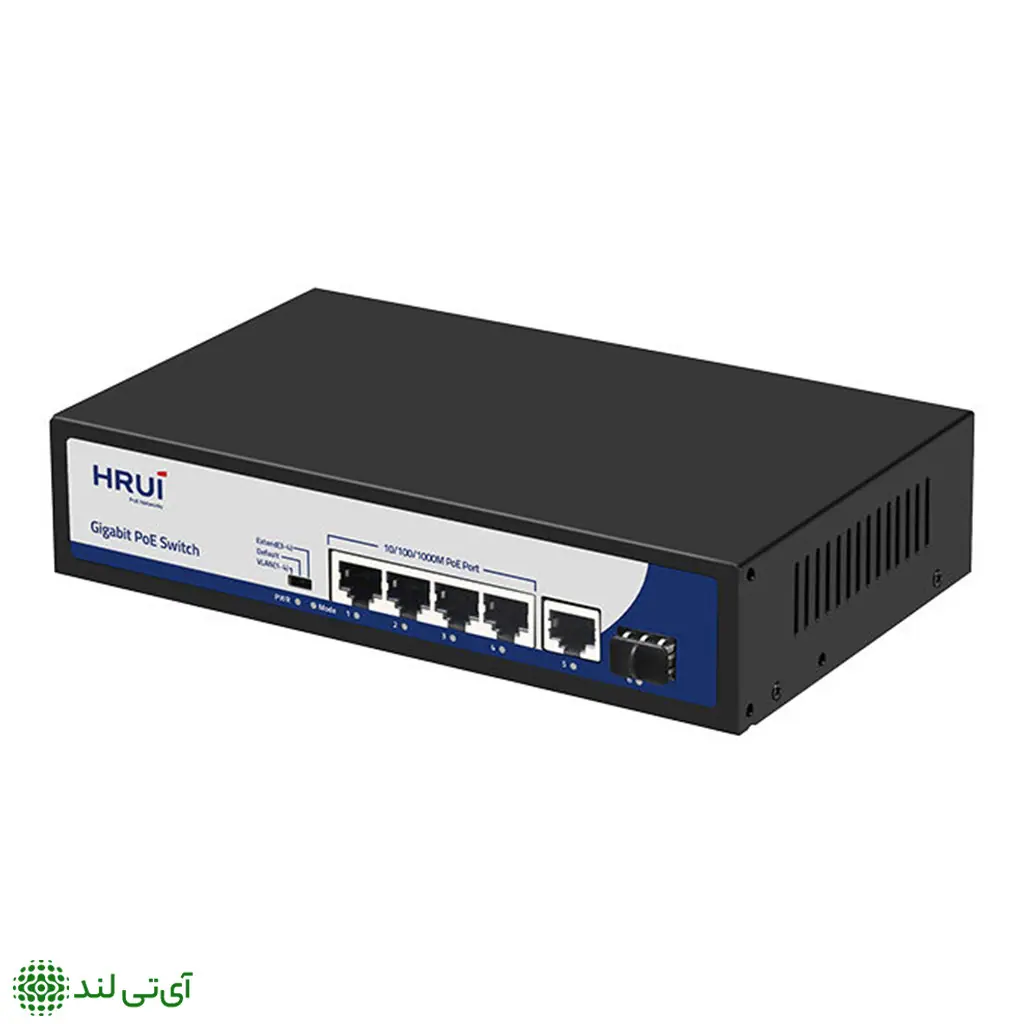

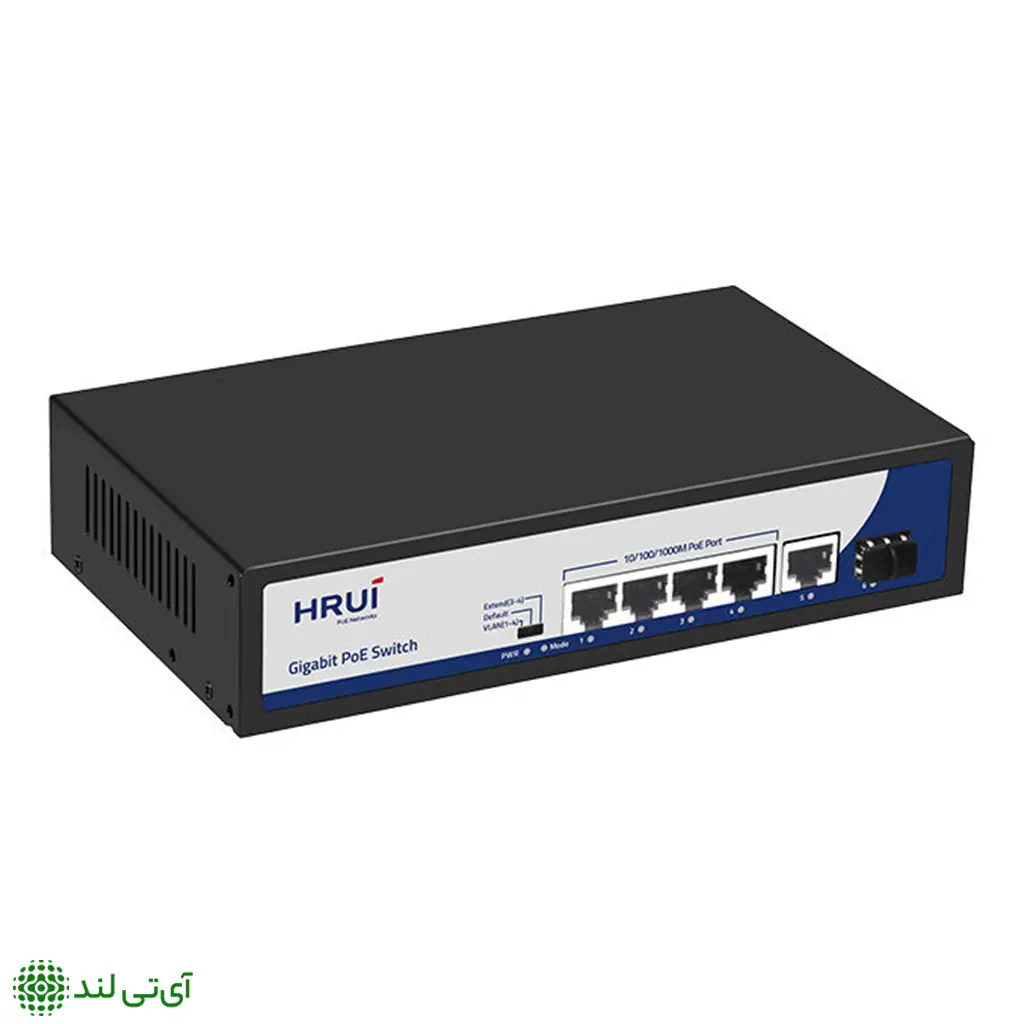

سوئیچ PoE گیگ اچ ار یو ای HRUI HR900-AFG-411NS-120
- سوئیچ 4 پورت PoE گیگ و 1 پورت Uplink گیگ و 1 پورت Uplink SFP
- سوئیچ گیگ PoE
- توان کل 65 وات
- پشتیبانی پورت های 4-3 از قابلیت اکستند (Extend)
- 30 ماه وارانتی بی قید و شرط
تماس بگیرید
Specification |
|
I/O Interface |
|
| Power | Input: AC 100-240V, 50/60Hz |
| Ethernet | 4*10/100/1000M PoE ports + 1*Gigabit Uplink RJ45 Port + 1* Gigabit SFP port |
Performance |
|
| Switching Capacity | 12Gbps |
| Forwarding Rate | 8.928Mpps |
| Packet Buffer | 1Mb |
| MAC Address | 2K |
| Jumbo Frame | 9216bytes |
| Transfer Mode | Store and forward |
| MTBF | 100000 hours |
Standard |
|
| Network protocol | IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3x |
| PoE Protocol | IEEE802.3af (15.4W) |
| IEEE802.3at (30W) | |
| Industry Standard | EMI: FCC Part 15 CISPR (EN55032) class A |
| EMS: EN61000-4-2 (ESD) | |
| EN61000-4-4 (EFT) | |
| EN61000-4-5 (Surge) | |
| Network Medium | 10BASE-T: Cat 3, 4, 5 UTP(≤100 meter) |
| 100BASE-TX: Cat5 or more UTP (≤100 meter) | |
| 1000Base-TX : Cat5 or more UTP/STP(≤100 meter) | |
| Optical Media | Multimode fiber: 50/125, 62.5/125, 100/140um |
| Single mode fiber: 8/125, 8.7/125, 9/125, 10/125um | |
Protection |
|
| Certificate | CE, FCC, RoHS |
Environment |
|
| Environment | Working Temperature: -10~50°C |
| Storage Temperature: -40~85°C | |
| Working Humidity: 10%~90%，non-condensing | |
| Storage Temperature: 5%~90%，non-condensing | |
| Working Height: Maximum 10,000 feet | |
| Storage height: Maximum 10,000 feet | |
Physical Features |
|
| Dimension | Product Dimension (L*W*H): 200*118*44mm |
| Package Dimension (L*W*H): 245*190*60mm | |
| N.W: 0.6kg | |
| G.W: 0.9kg | |
| Packing Info | Carton MEAS: 505*320*400mm |
| Packing Qty: 20 units | |
| Packing Weight: 19KG | |
| Power Voltage | Input Voltage : AC 100-240 V |
| Power supply: 52V2.3A | |
| Package List | Switch 1 pcs, Power cord 1 pcs, User manual 1 pc, Certification 1 pc |
Indicators |
|
| DIP Switch | VLAN: Port isolation mode. In this mode, the PoE ports (1-4) of the switch cannot communicate with each other, and can only communicate with the UP-link port |
| Default: Normal mode, all port can communicate with each other, the transmission distance is within 100 meters, the transmission rate is 10M / 100/1000M adaptive | |
| Extend: Link extension mode, 3-4 ports PoE power supply and data transmission distance can be extended to 250 meters, the transmission rate becomes 10M | |
| LEDs | PWR(power supply)，Mode(DIP)，1-6(Link&Data) |
| برند |
HRUI | اچ آر یو آی |
|---|---|
| گارانتی |
30 ماه وارانتی ( تعویض بی قید و شرط ) |
