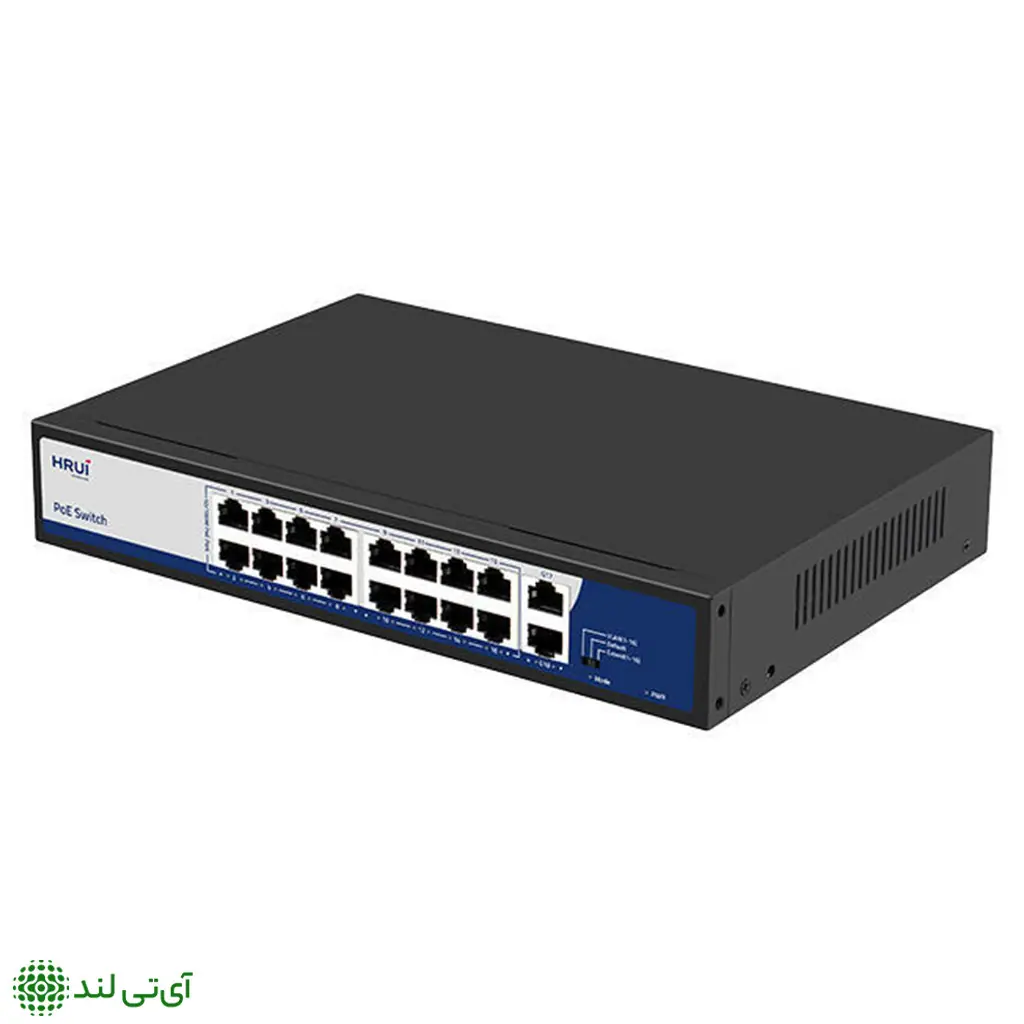

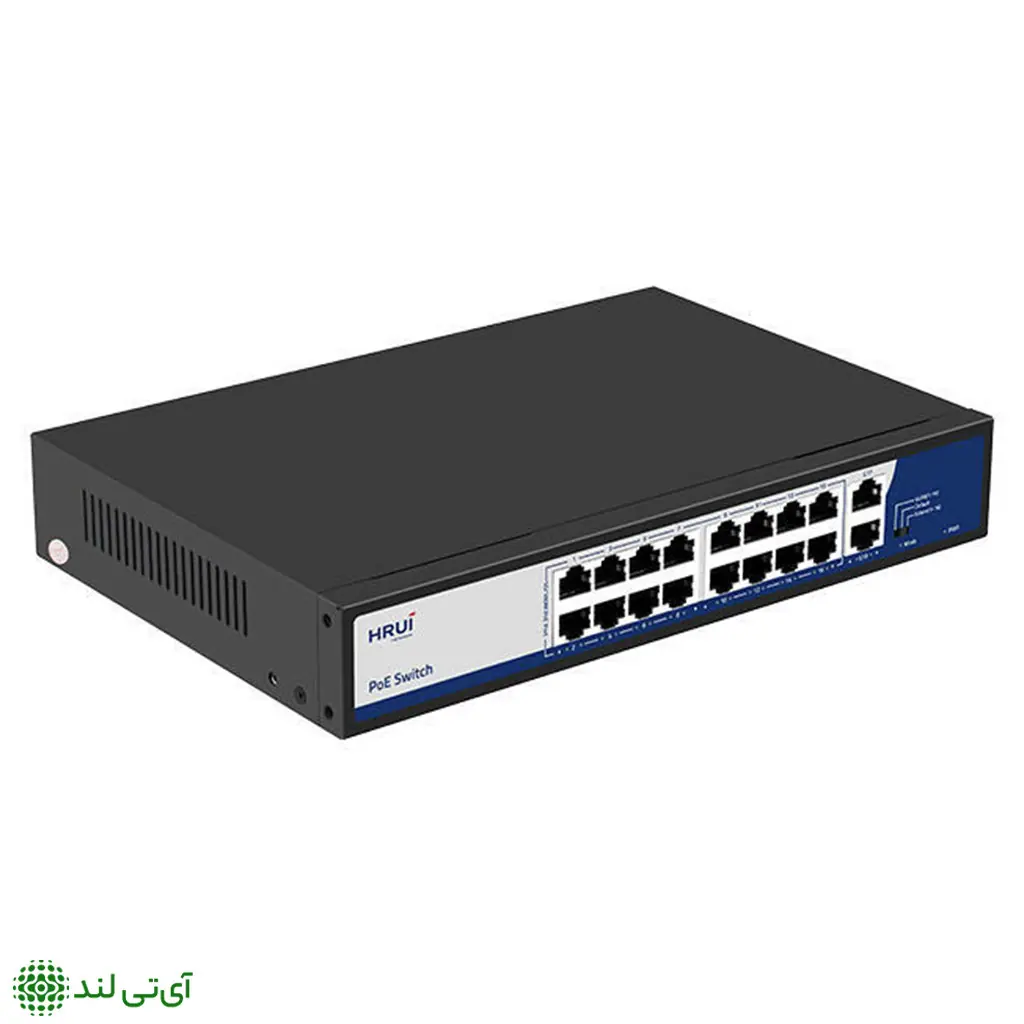

سوئیچ PoE اچ ار یو ای HRUI HR902-AF-162G-300
- سوئیچ 16 پورت 10/100Mbps PoE و 2 پورت Uplink گیگ
- سوئیچ PoE
- توان کل 300 وات
- 30 ماه وارانتی بی قید و شرط
تماس بگیرید
Technical parameters |
|
Input/output interface |
|
| Power | AC INPUT （100-240V） 50/60Hz |
| Ethernet | 16*10/100M PoE Port2*Gigabit uplink RJ45 Port |
Performance |
|
| bandwidth | 7.2 Gbps |
| Packet forwarding rate | 5.35Mpps |
| Package cache | 1.5Mbit |
| MAC addess | 2K |
| Jumbo frames | 9216bytes |
| Forwarding mode | Store and forward |
| MTBF | 100000 hours |
Standard |
|
| Network protocol | IEEE802.3 (Ethernet)IEEE802.3u (Fast Ethernet)
IEEE802.3ab(Gigabit Ethernet) IEEE802.3x (Flow Control) |
| PoE Protocol | IEEE802.3af （15.4W）IEEE802.3at （30W） |
| Network Medium | 10BASE-T: Cat 3、4、5 UTP(≤100 meter)100BASE-TX: Cat5 or more UTP (≤100 meter)
1000Base-TX : Cat5 or more UTP/STP(≤100 meter) |
Certificate |
|
| Safety Certification | CE、FCC、RoHS |
Environment Standard |
|
| Working Environment | Working Temperature：-10~50°CStorage Temperature：-40~70°C
Working Humidity ：10%~90%，non-condensing Storage Temperature：5%~95%，non-condensing |
Physical Features |
|
| Dimension | Product Dimension：268*181*44mmPackage Dimension：312*262*84mm
N. W：1.29KG(200w)/1.44KG(300w) G.W：1.77KG(200w)/1.92KG(300w) |
| Packing Info | Carton MEAS：540*435*332mmPacking Qty：10 PCS
Packing Weight：18.7KG(200w)/20.2KG(300w) |
| Power Voltage | Input Voltage ：AC 100-240 VPower supply：52V 3.8A / 52V 5.76A |
| power | Product power: maximum 10W / maximum 10WPOE power: maximum 180W / maximum 280W |
| Packing list | Switch 1 pc, Power cord 1 pcs, User manual 1 pc, Certification 1 pc, Brackets 1 pair |
Indicators |
|
| LEDs | PWR（power supply），Mode（DIP），1-18 Green Light（Link&Data） |
| PWR | Lighting：Powered |
| Un-Light：No Power | |
| Mode | Lighting：VLAN（Port Isolation） |
| Un-Light：Default（General mode） | |
| Flash：Extend（Extend） | |
| 1-18 Green Light | Lighting：Connecting |
| Un-Light：Disconnect | |
| Flashing：Data Transmit | |
| VLAN | Port isolation mode. In this mode, the PoE ports (1-16) of the switch cannotcommunicate with each other, and can only communicate with the UP-link port. |
| Default | OFF: Normal mode, all port can communicate with each other, the transmission distance is within 100 meters, the transmission rate is 10M / 100M adaptive; |
| Extend | Extend : Link extension mode, 1-16 ports PoE power supply and data transmission distance can be extended to 250 meters, the transmission rate becomes 10M |
| برند |
HRUI | اچ آر یو آی |
|---|---|
| گارانتی |
30 ماه وارانتی ( تعویض بی قید و شرط ) |
