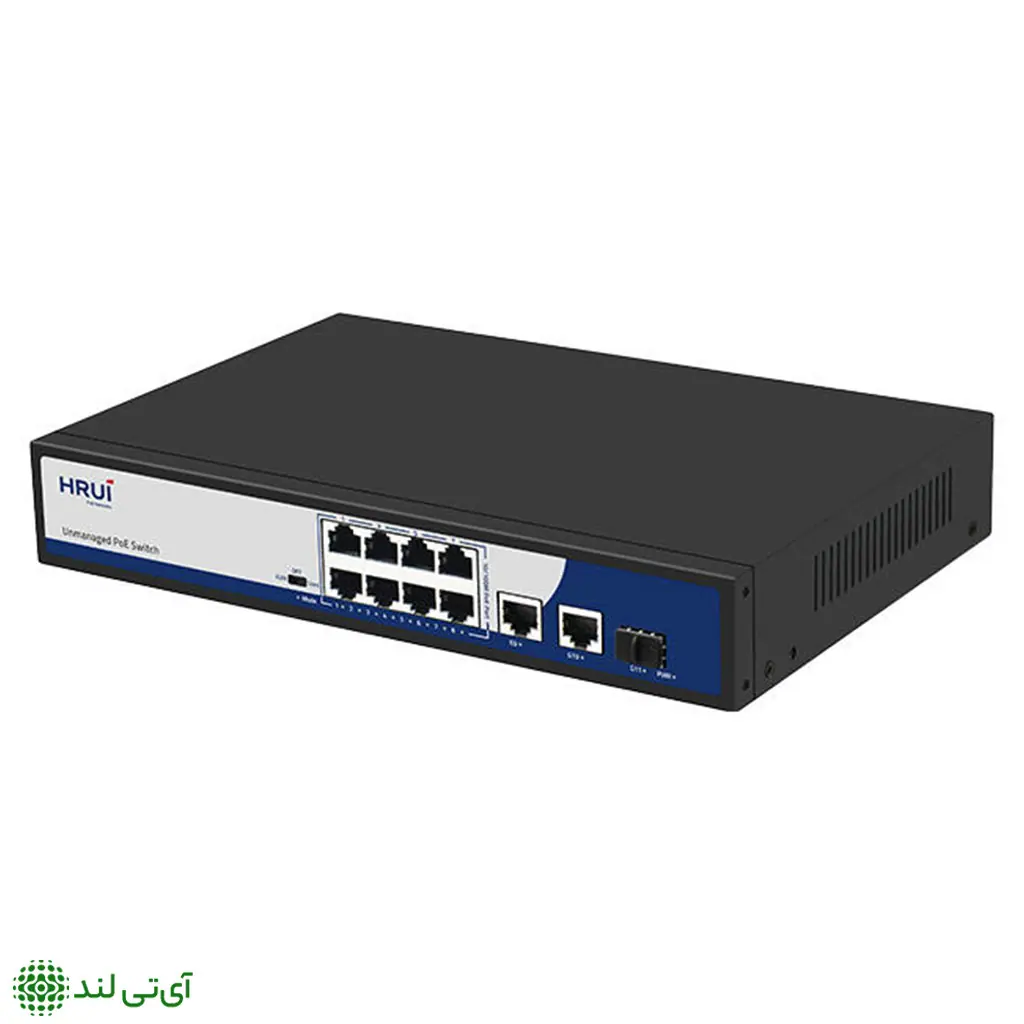

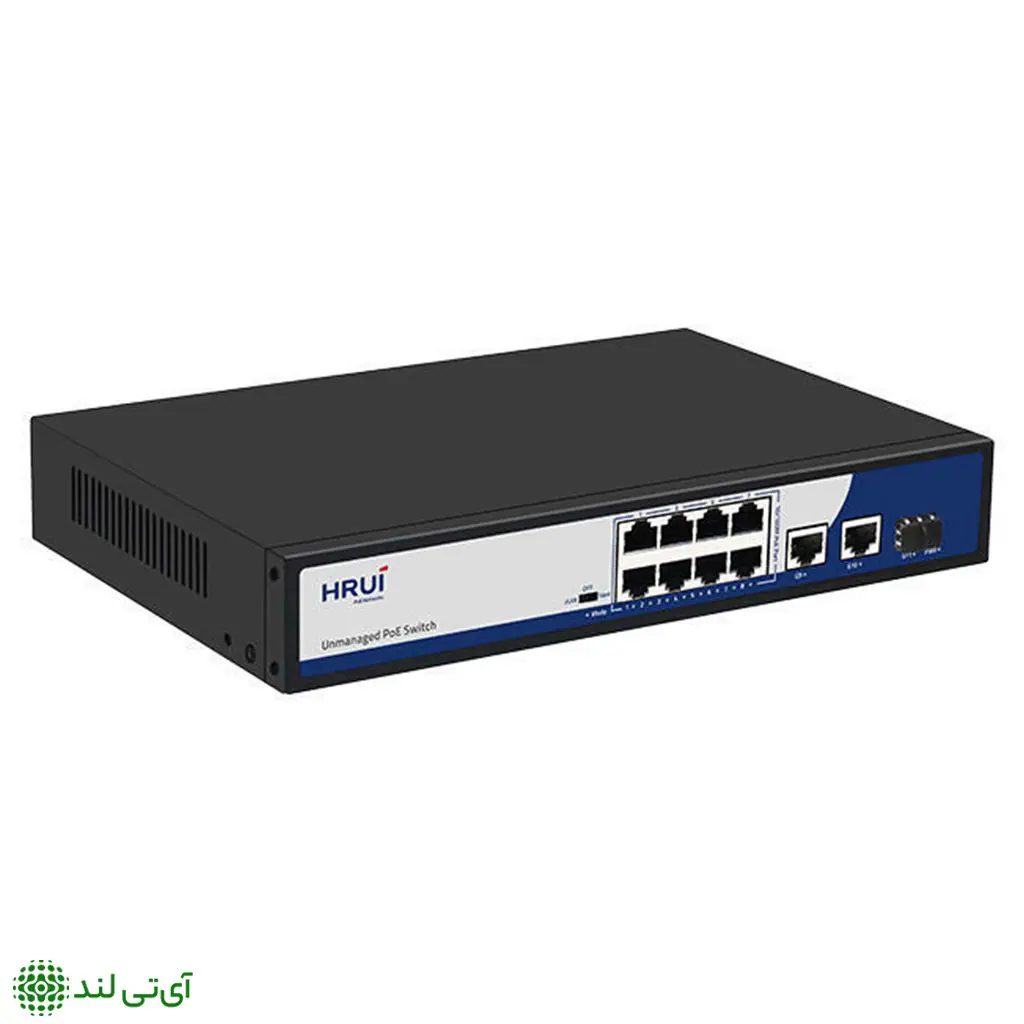

سوئیچ PoE اچ ار یو ای HRUI HR901-AF-821GNS
- سوئیچ 8 پورت 10/100Mbps PoE و 2 پورت Uplink گیگ و 1 پورت SFP گیگ
- سوئیچ PoE
- توان کل 120 وات
- 30 ماه وارانتی بی قید و شرط
- ایران کد 2233120766280012
تماس بگیرید
Specification |
|
I/O Interface |
|
| Power | Input: AC 100-240V, 50/60Hz |
| Ethernet | 8 Port 10/100M PoE |
| 2 Port 1000M Ethernet Uplink | |
| 1 port SFP 1000M Uplink | |
Performance |
|
| Switching Capacity | 7.6Gbps |
| Throughput | 5.6Mpps |
| Packet Buffer | 1.5Mb |
| MAC Address | 2K |
| Jumbo Frame | 9216bytes |
| Transfer Mode | Store and forward |
| MTBF | 100000 hour |
Standard |
|
| Network protocol | IEEE802.3 (10Base-T) |
| IEEE802.3u (100Base-TX) | |
| IEEE802.3ab (1000Base-TX) | |
| IEEE802.3z(1000Base-FX) | |
| IEEE802.3x (Flow control) | |
| PoE Protocol | IEEE802.3af (15.4W) |
| IEEE802.3at (30W) | |
| Industry Standard | EMI: FCC Part 15 CISPR (EN55032) class A |
| EMS: EN61000-4-2 (ESD), EN61000-4-4 (EFT) | |
| Shock: IEC 60068-2-27 | |
| Free Fall: IEC 60068-2-32 | |
| Vibration: IEC 60068-2-6 | |
| Network Medium | 10Base-T: Cat3, 4, 5 or above UTP(≤100m) |
| 100Base-TX : Cat5 or above UTP(≤100m) | |
| 1000Base-TX : Cat5 or above UTP(≤100m) | |
Protection |
|
| Security Certificae | CE, FCC, RoHS |
Environment |
|
| Working Environment | Working Temperature: -10~50°C |
| Storage Temperature: -40~85°C | |
| Working Humidity : 10%~90%，non-condensing | |
| Storage Temperature: 5%~90%，non-condensing | |
| Working Height: Maximum10,000 feet | |
| Storage heigh: Maximum 10,000 feet | |
Indication |
|
| LED Indicators | PWR(power supply)，SW(DIP)，1-11 Green(Link&Data) |
| DIP Switch | VLAN: Port isolation mode. In this mode, the PoE ports (1-8) of the switch cannot communicate with each other, and can only communicate with the UP-link port. |
| Normal: Normal mode, all port can communicate with each other, the transmission distance is within 100 meters, the transmission rate is 10M / 100M adaptive; | |
| Extend: Link extension mode, 1-8 ports PoE power supply and data transmission distance can be extended to 250 meters, the transmission rate becomes 10M; | |
Mechanical |
|
| Structure Size | Product Dimension (L*W*H): 270*180*45mm |
| Package Dimension (L*W*H): 312*262*84mm | |
| N.W: 1.1kg | |
| G.W: 1.7kg | |
| Packing Info | Carton MEAS: 540*435*332mm |
| Packing Qty: 10 units | |
| Packing Weight: 18KG | |
| Power Voltage | Input Voltage : AC 100-240 V |
| Power supply: 52V2.3A | |
| Package List | Switch 1 pcs, Power cord 1 pcs, User manual 1 pc, Warranty card 1 pc, Brackets 1 pair(Selectable) |
| برند |
HRUI | اچ آر یو آی |
|---|---|
| گارانتی |
30 ماه وارانتی ( تعویض بی قید و شرط ) |
