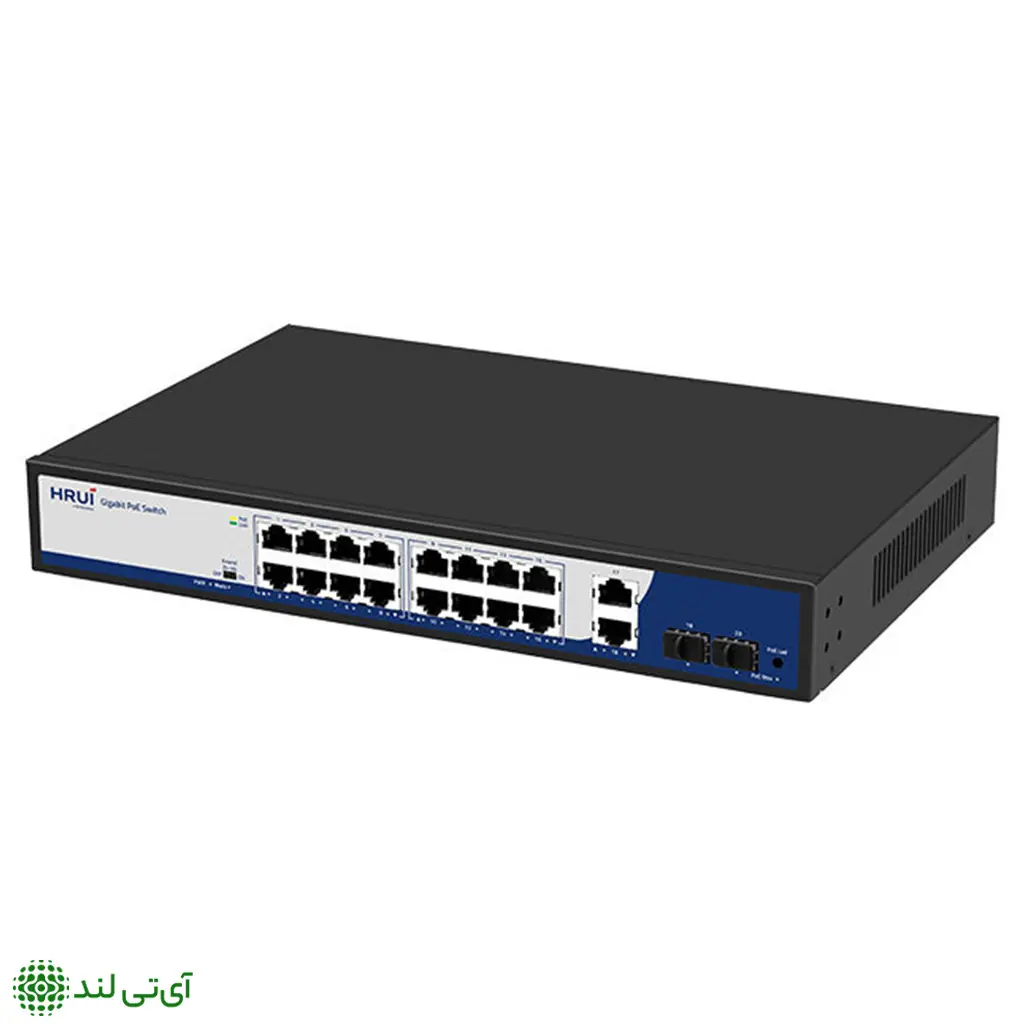

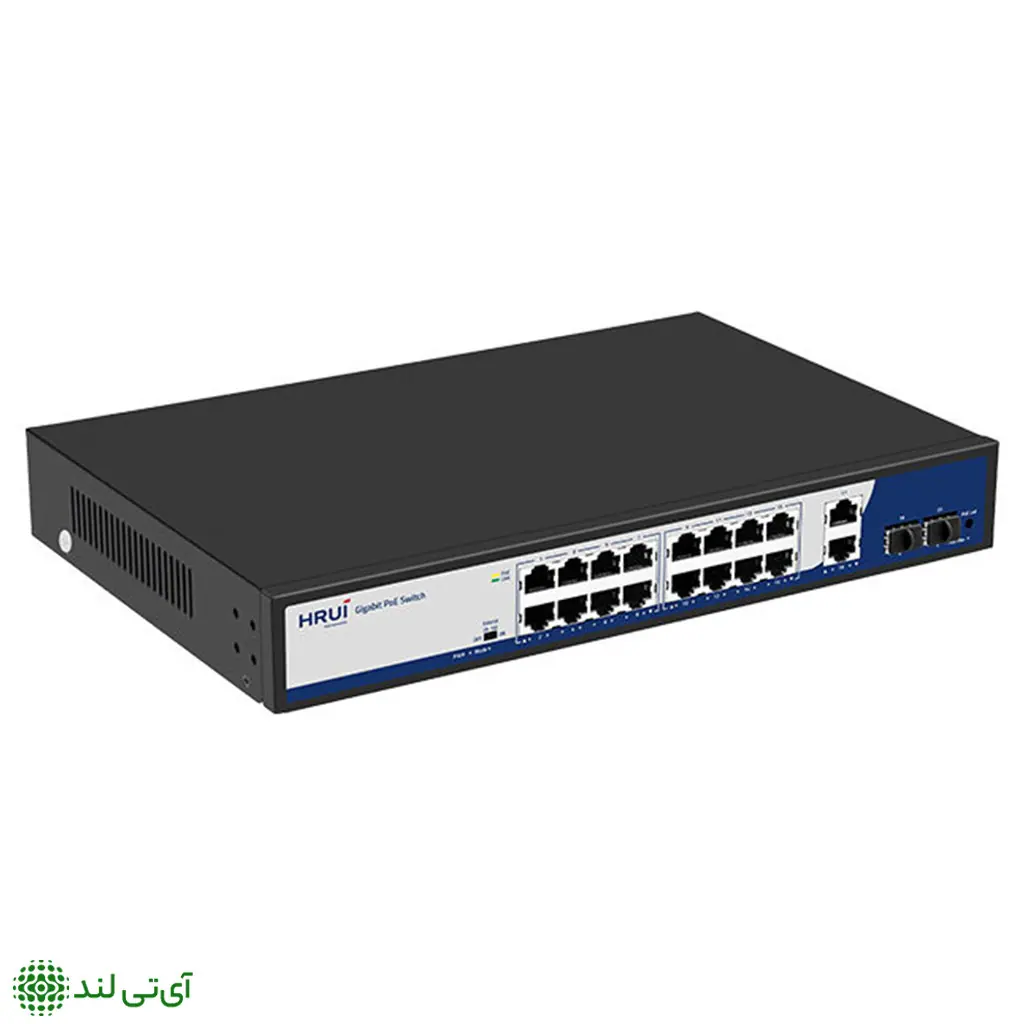

سوئیچ PoE اچ ار یو ای HRUI HR900-AFG-1622S-300
- سوئیچ 16 پورت PoE گیگ و 2 پورت Uplink گیگ و 2 پورت SFP Uplink گیگ
- سوئیچ PoE
- توان کلی 300 وات
- 30 ماه وارانتی بی قید و شرط
تماس بگیرید
Specification |
|
I/O Interface |
|
| Power | AC INPUT （100-240 V） |
| Ethernet | 16*Gigabit PoE Ports2*Gigabit Uplink ports
2*Gigabit SFP Ports |
| Chipset | EN8850DH，RTL8238B |
Performance |
|
| Bandwidth | 40Gbps |
| Packet Forward Rate | 29.76Mpps |
| Package Cache | 3Mbit |
| MAC Address | 8K |
| Forwarding Mode | Store and forward |
Standard |
|
| Network Protocol | IEEE802.3 (Ethernet)IEEE802.3u (Fast Ethernet)
IEEE802.3ab (Gigabit Ethernet) IEEE802.3x (Flow Control) IEEE 802.3z (Gigabit Ethernet Fiber Standard) |
| PoE protocol | IEEE802.3af （15.4W）IEEE802.3at （30W）
POE port output voltage: DC 44-57V POE power supply core: 1/2+; 3/6- |
| Industry Standard | EMS: EN61000-4-2 (ESD)、IEN61000-4-5 （Surge） |
| Network medium | 10Base-T: Cat 3, 4, 5 Class or above UTP/STP (≤ 100m)100Base-TX: Cat 5 Class or above UTP/STP (≤ 100m)
1000Base-TX: Cat 5 Class or above UTP/STP (≤ 100m) |
| Optical Medium | Multimode optical fiber: 50/125, 62.5/125, 100/140umSingle-mode optical fiber: 8/125, 8.7/125, 9/125, 10/125um |
Certification |
|
| Safety Certificate | CE/FCC/ROHS |
Environment Standard |
|
| Working Environment | Working temperature: -10~50°CStorage temperature: -40~70°C
Working humidity: 10%~90%, non-condensing Storage humidity: 5%~95%, non-condensing |
Physical Specification |
|
| Structure Size | Product Dimensions: 320*207*44mmPackage Dimensions: 370*290*85mm
Product N.W: 1.87KG Product G.W: 2.43KG |
| Packing Info | Carton Dimensions: 445*310*390mmPacking Quantity:5 PCS
Packing Weight: 13.15KG |
| Power Voltage | Input Voltage: AC 100-240 V 50-60HzSupply Power: 52V /5.76A |
| Power Consumption | Product power: maximum 10WPOE power: maximum 280W |
| Package List | Switch 1 pc, Power cord 1 pc, User manual 1 pc, Certification 1 pc |
Indicator |
|
| LED Indicator | PWR（Power），1-20 Green Light(Link&Data)，1-16（Yellow Light），POE Led Key |
| PWR | On: Powered onOff: Powered off |
| 1-20 Green Light(Link&Data) | On: Link normalOff: Link blocked
Flashing: Data transmitting |
| 1-16 （Yellow Light） | On：POE power supply is normaOff：POE not powered |
| PoE Max POE power light （Green Light） | Off: indicates PoE power usage is less than 90%Flashing: indicates PoE power usage of 90% ≤ P ≤ 95%
On: indicates that PoE power is used at 95%<P<100% |
| Mode DIP Switch light | On：Extend onOff：Extend off |
| PoE Led Key | Dual color light selection: default green (link data), switch yellow light (PoE) |
| Extend DIP Switch | OFF：common mode, all interfaces can communicate with each other, thetransmission distance is less than 100 meters, the transmission rate is 10/100/1000M
adaptive; The port AI mode is disabled ON: Link extension mode, 9-16 ports force 10M, link 250M (enable POE watchdog),Port AI mode is enabled; |
| برند |
HRUI | اچ آر یو آی |
|---|---|
| گارانتی |
30 ماه وارانتی ( تعویض بی قید و شرط ) |
