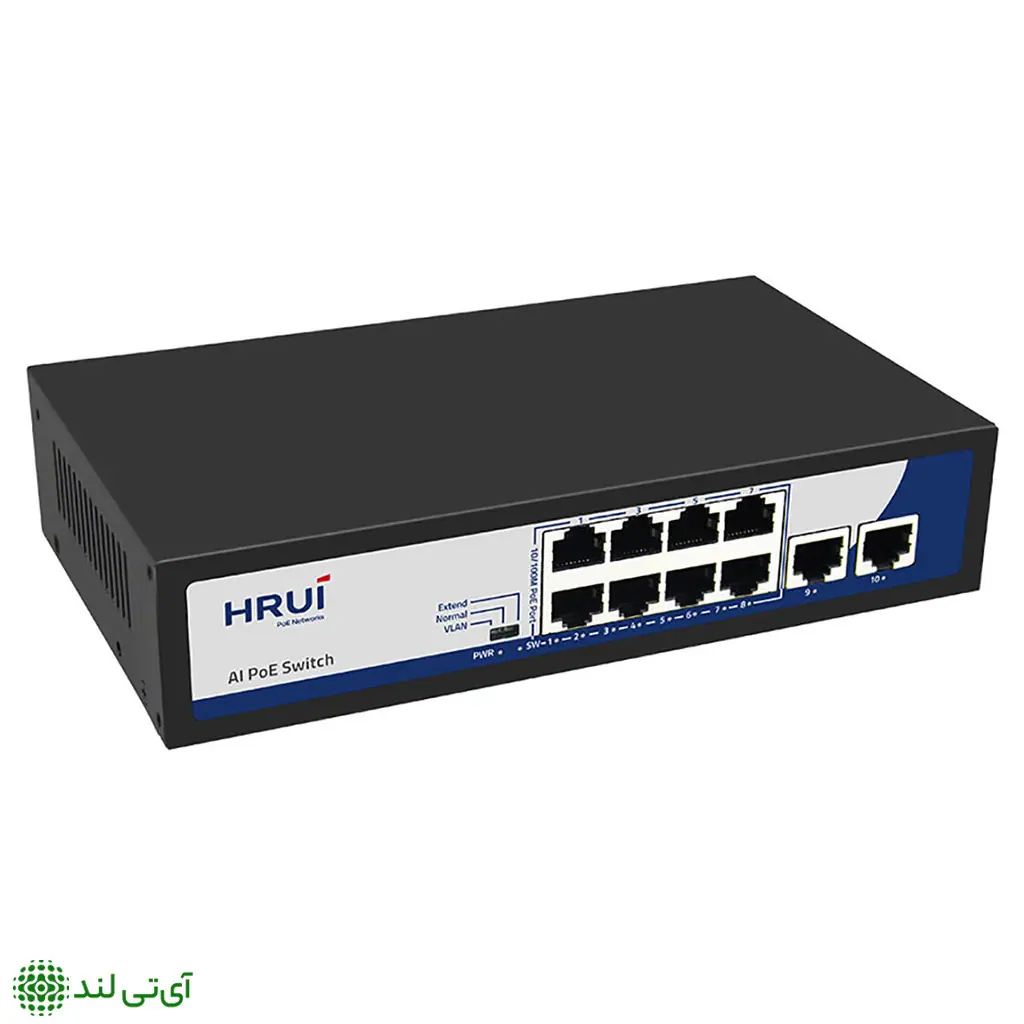

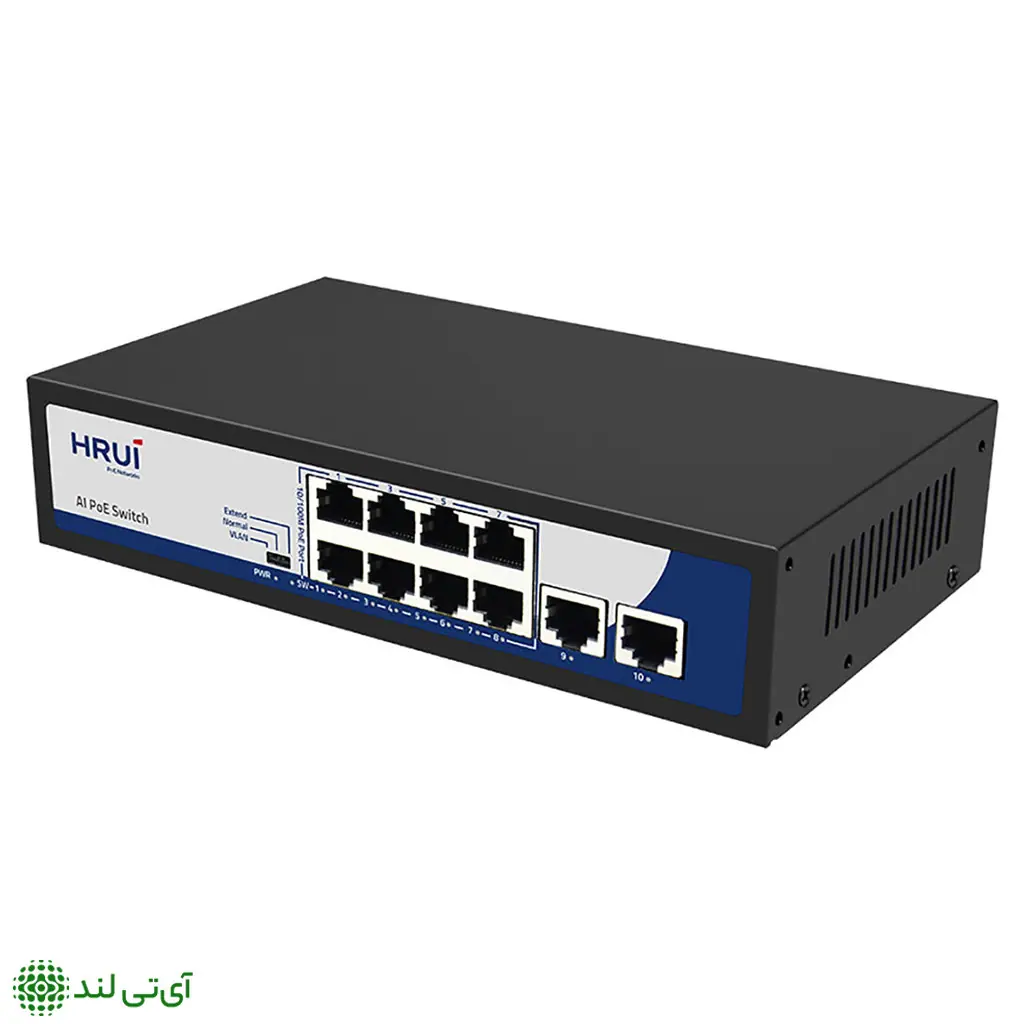

سوئیچ PoE اچ ار یو ای HRUI HR900-AF-82N
- سوئیچ 8 پورت 10/100M PoE و 2 پورت Uplink
- سوئیچ PoE
- توان کل 120 وات
- 30 ماه وارانتی بی قید و شرط
- ایران کد 2233120766280009
تماس بگیرید
Specification |
|
I/O Interface |
|
| Power | AC input (100-240 V) |
| Ethernet | 8 Port 10/100M PoE |
| 2 Port 10/100M Ethernet Uplink | |
Performance |
|
| Switching Capacity | 2Gbps |
| Throughput | 1.488Mpps |
| Packet Buffer | 448K |
| MAC Address | 2K |
| Jumbo Frame | 2Kbytes |
| Transfer Mode | Store and forward |
| MTBF | 100000 hour |
Standard |
|
| Network Protocol | IEEE802.3 (10Base-T) |
| IEEE802.3u (100Base-TX) | |
| IEEE802.3x (Flow control) | |
| PoE Protocol | IEEE802.3af (15.4W) |
| IEEE802.3at (30W) | |
| Industry Standard | EMI: FCC Part 15 CISPR (EN55032) class A |
| EMS: EN61000-4-2 (ESD) | |
| EN61000-4-4 (EFT) | |
| EN61000-4-5 (Surge) | |
| Network Medium | 10Base-T: Cat3, 4, 5 or above UTP(≤100m) |
| 100Base-TX: Cat5 or above UTP(≤100m) | |
Protection |
|
| Security Certificae | CE、FCC、RoHS |
| Environment | |
| Working Environment | Working Temperature: –10~50°C |
| Storage Temperature: -40~85°C | |
| Working Humidity: 10%~90%，non-condensing | |
| Storage Temperature: 5%~95%，non-condensing | |
| Working Height: Maximum10,000 feet | |
| Storage heigh: Maximum 10,000 feet | |
Mechanical |
|
| Structure Size | Product Size: 200*118*44mm |
| Package Size: 245*190*60mm | |
| Product Net-Weight: 0.6kg | |
| Product Gross-Weight: 0.9kg | |
| Packing Info | MEAS: 505*320*400mm |
| Packing Qty: 20 unit | |
| Packing weight: 19 KG | |
| Power Voltage | Input Voltage: AC 100-240 V |
| Output Voltage: 52V2.3A | |
| Package List | Switch 1 pcs, Power cord 1 pcs, User manual 1 pcs, Certification 1 pc |
Indication |
|
| DIP Switch | VLAN: Port isolation mode. In this mode, the PoE ports (1-8) of the switch cannot communicate with each other, and can only communicate with the UP-link port. The port AI mode is turned on |
| Normal: Normal mode, all port can communicate with each other, the transmission distance is within 100 meters, the transmission rate is 10M/100M adaptive; The port AI mode is closed | |
| Extend: Link extension mode, 1-8 ports PoE power supply and data transmission distance can be extended to 250 meters, the transmission rate becomes 10M, and the port AI mode is turned on | |
| LED Indicators | PWR、SW、1-10 Link |
| برند |
HRUI | اچ آر یو آی |
|---|---|
| گارانتی |
30 ماه وارانتی ( تعویض بی قید و شرط ) |
